Located in Chennai, India, Kunj Sheets and Plates is a well-known manufacturer and supplier of premium stainless steel 347 sheets and plates for a range of industrial uses. Kunj, which is well-known for its accuracy and quality, manufactures heat-stable and corrosion-resistant goods that can withstand harsh conditions. They use cutting-edge technology to manufacture their stainless steel 347 sheets and plates, which meet international quality standards. Kunj is a reliable supplier of stainless steel solutions in India and abroad, serving sectors like petrochemicals, power generation, and aerospace with an emphasis on performance, durability, and customer satisfaction.
The main constituents of Stainless Steel 347, a stabilised austenitic stainless steel alloy, are 17–20% chromium, 9–13% nickel, and trace amounts of tantalum and columbium (niobium). Intergranular corrosion resistance is enhanced by this composition, particularly following exposure to high temperatures. It has a yield strength of about 205 MPa and a tensile strength of about 515 MPa. The alloy is perfect for high-temperature applications because it also has good creep and stress rupture properties. Even under high-temperature service conditions, stainless steel 347 retains exceptional toughness and oxidation resistance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

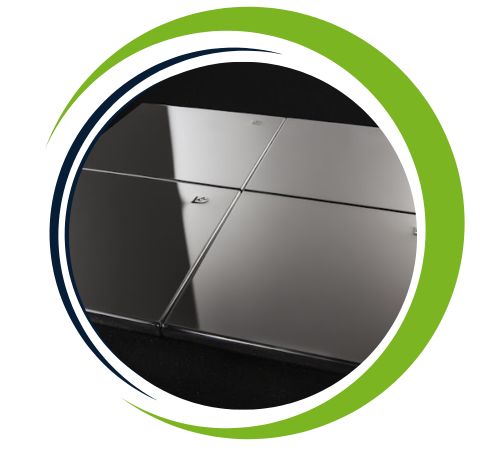

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

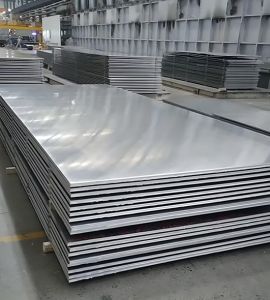

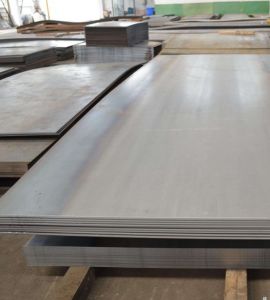

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

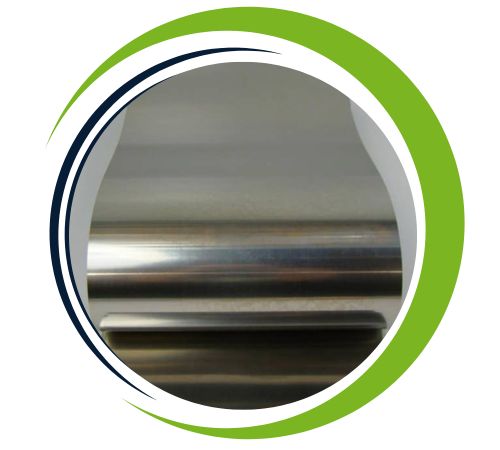

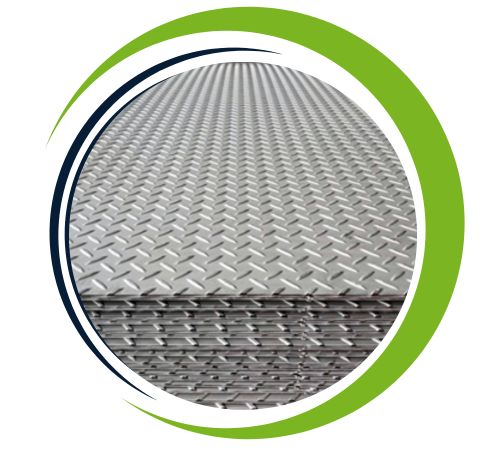

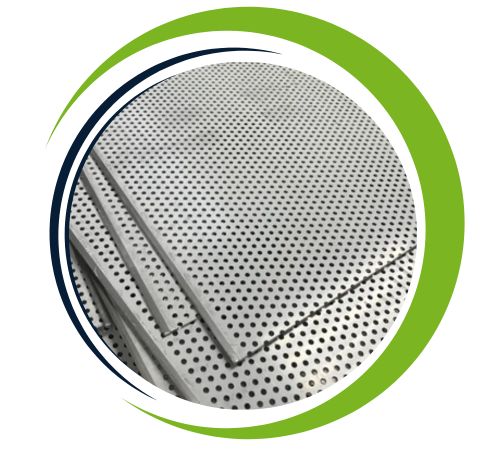

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|

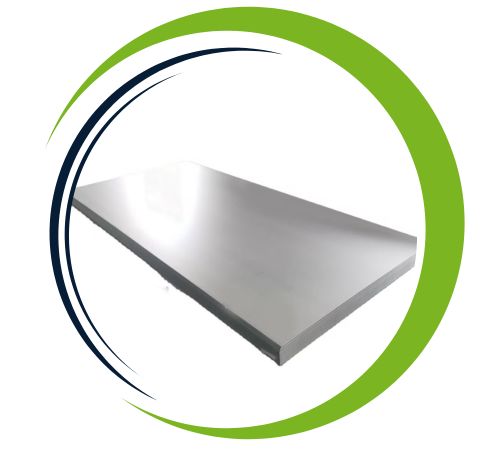

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347 sheets and plates offer several advantages, including excellent resistance to intergranular corrosion, making them ideal for high-temperature applications The addition of niobium stabilizes the material and provides carbide precipitation a resistance is high, especially in the welded state. It provides excellent oxidation and scaling resistance at high temperatures, making it suitable for environmental applications such as chemical processing, power generation, aerospace industries etc. Stainless steel 347 with strength a outstanding, durable and corrosion resistance ensure long-term performance in extreme conditions, reduce maintenance costs and extend component life.
Applications involving high temperatures and corrosive environments frequently use stainless steel 347 sheets and plates. They are perfect for the petrochemical, oil and gas, and power generation industries and are frequently found in heat exchangers, boiler parts, and furnace parts. They are appropriate for exhaust systems, aircraft engine parts, and thermal processing equipment due to their resistance to oxidation and intergranular corrosion. Because of their stability and simplicity of fabrication, they are also utilised in food processing, pharmaceutical equipment, and chemical processing facilities. Long-term dependability is provided by stainless steel 347 under corrosive and high-temperature service conditions.
