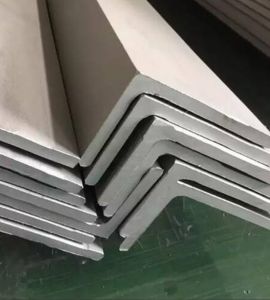

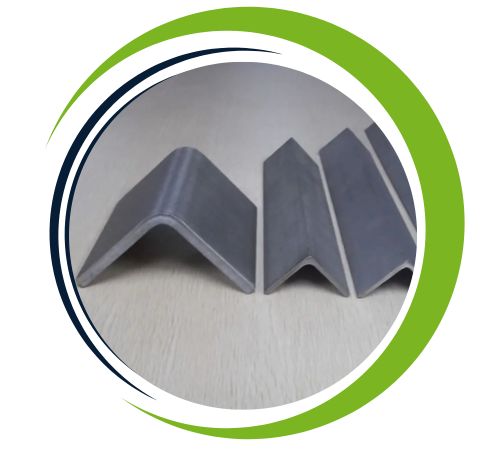

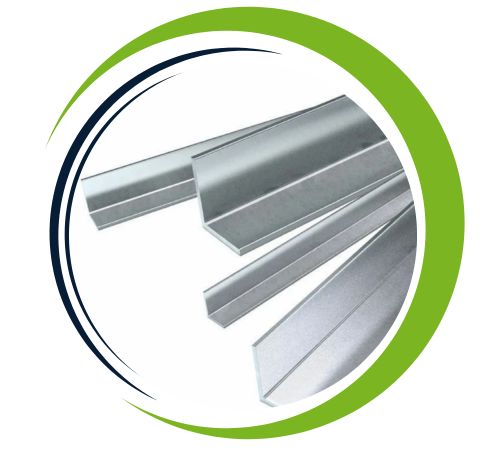

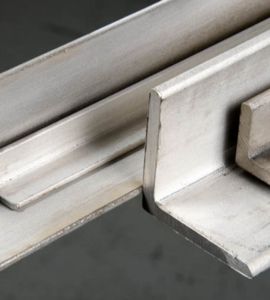

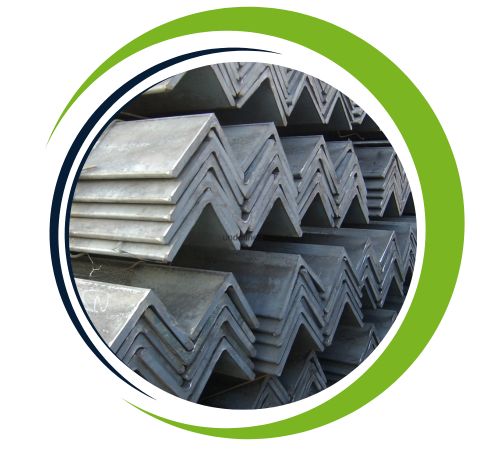

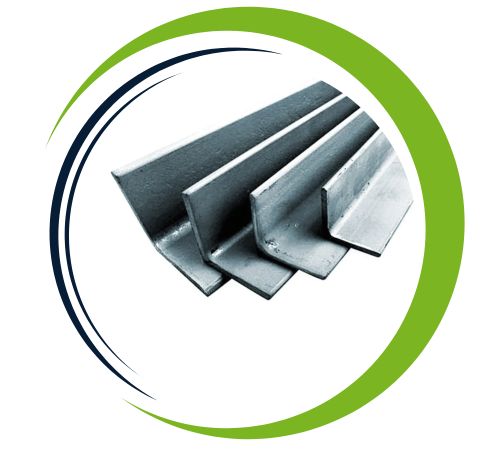

Kunj Sheets and Plates is a top-notch manufacturer and supplier of Stainless Steel 347H Angles, proudly based in Chennai, India. They’ve built a solid reputation for providing high-performance stainless steel products, and their precision-crafted 347H Angles are perfect for high-temperature and pressure applications. This particular stainless steel grade, 347H, is a stabilized austenitic alloy that boasts impressive resistance to intergranular corrosion and exceptional strength even at elevated temperatures. It’s an excellent choice for structural support in demanding sectors like petrochemical, power generation, and refinery processing. With state-of-the-art manufacturing facilities, strict quality controls, and a strong commitment to customer satisfaction, Kunj caters to clients throughout India and beyond, delivering reliable and durable solutions.
The Stainless Steel 347H Angles are crafted from an austenitic stainless steel alloy that’s stabilized with columbium (niobium), making it ideal for high-temperature applications. This alloy typically contains around 18–20% chromium, 8–11% nickel, and a bit of carbon (0.04–0.10%) to boost its strength. It excels in resisting oxidation and intergranular corrosion at high temperatures. With a tensile strength of about 515 MPa and a yield strength of 205 MPa, it also offers good creep resistance. Its mechanical stability and weldability make it a fantastic option for structural components that face thermal cycling and high-stress conditions.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| SS 347H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 8xC – 1.10 | 9.0 -13.0 | 63.72 min |
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 347 | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| 347H | 8000 | 500 | 720 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
| SS 347H | 1.4961 | S34709 | SUS 347H | – | X6CrNiNb18-12 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 347H Angles are widely used in applications where high-temperature strength and corrosion resistance are crucial. In the petrochemical and oil & gas industries, they are used for support structures in heaters, furnaces, and reactors. In power plants, they are suitable for boiler components, superheaters, and heat exchangers. Pharmaceutical and food processing industries use them in equipment where contamination resistance and thermal durability are necessary. They are also employed in aerospace, refineries, and chemical processing plants for structural support under thermal stress. Their weldability and resistance to scaling make them reliable for long-term, high-temperature applications.
