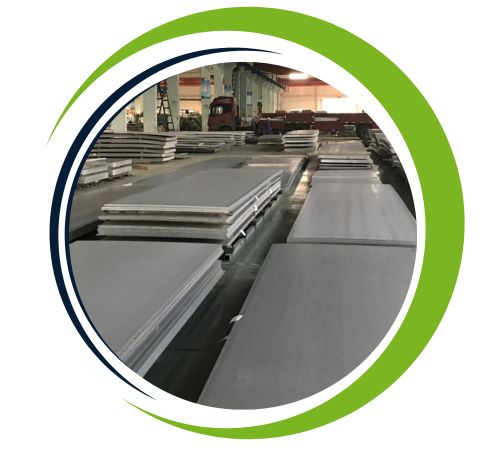

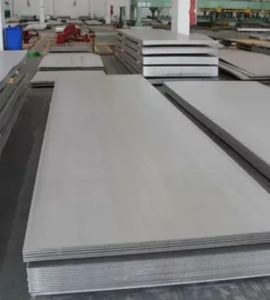

Kunj Sheets and Plates is a quality manufacturer and supplier of Stainless Steel 348H sheets and plates in Delhi, India, that provides superior-grade products for high-temperature and heat-resistant use. Our Stainless Steel 348H sheets and plates are reputed for their superior mechanical strength, intergranular corrosion resistance, and superior performance in high-temperature conditions. Engineered to perfection and produced according to international standards, we provide to industries like petrochemical, power generation, heat exchangers, and furnace parts, with cost-effective and long-lasting solutions that provide reliability and long service life under challenging conditions.
348H Stainless Steel is a stabilized austenitic stainless steel with a content of about 17–19% Chromium, 9–13% Nickel, with a Columbium (Niobium) addition for stability against intergranular corrosion. The “H” grade means a greater carbon content for increased resistance to creep at elevated temperatures. It has a minimum tensile strength of 585 MPa, 240 MPa yield strength, and 35% elongation. This steel grade ensures higher strength and oxidation resistance in continuous service up to 900°C (1650°F), which makes it well-suited for high-temperature structural purposes.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Mn | P | C | S | Cr | Si | Ni | Fe | Co |
| SS 348 | 2.0 | 0.045 | 0.080 | 0.030 | 19 | 1.0 | 11 | 66 | 0.2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 348 | 1.4550 | S34800 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 348 Sheet and Plates offers many advantages, including exceptional resistance to intergranular corrosion, especially in welded structures, increased durability through its excellent oxidation and scaling resistance to heat transfer 1600°F (870°C) internals, ideal for high temperature internals. The alloy’s high strength, excellent formability and weldability make it suitable for a variety of applications. Stainless steel 348 is also corrosion resistant in harsh environments, ensuring durability and reliability. Its resistance to thermal expansion and hardening makes it desirable for applications in the aerospace, chemical and electrical industries.
Stainless Steel 348H plates and sheets are widely utilized in high-temperature conditions where thermal stability and corrosion resistance are important. Typical applications are in heat exchanger tubes, pressure vessels, boiler parts, furnace elements, radiant tubes, and superheaters in power generation and petrochemical industries. They are employed in chemical processing, oil refineries, and thermal processing equipment. Their creep resistance, oxidation, and intergranular corrosion resistance render them well-suited for long-term applications in environments where carbon steel and lower grades of stainless steel would degrade, providing safety, performance, and durability in applications with high heat.
