Kunj Sheets and Plates is a prominent manufacturer and exporter of Stainless Steel 410 sheets and plates in Delhi, India, providing high-quality materials intended to provide strength, durability, and slight corrosion resistance. Our Stainless Steel 410 sheets and plates have the best hardness, machinability, and wear resistance, which makes them suitable for both structural and industrial uses. Made with accuracy and to international specifications, we supply a wide variety of industries such as automobile, engineering, petrochemical, and power generation, and promise consistent performance, economical cost, and extended lifespan under tough conditions.
410 Stainless Steel is a martensitic stainless steel containing around 11.5–13.5% Chromium and up to 0.15% Carbon. Due to this composition, it can be heat treated for high strength and hardness with satisfactory corrosion resistance. Mechanical features encompass minimum tensile strength of 650 MPa, yield strength of 275 MPa, and elongation of 20%. It is ferromagnetic in all states and possesses good resistance against atmospheric conditions, mild acids, and industrial atmospheres and is thus ideal for mechanical as well as high-temperature applications.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

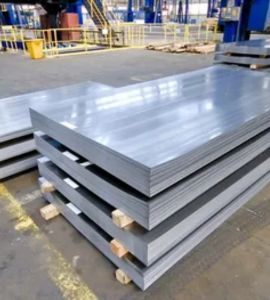

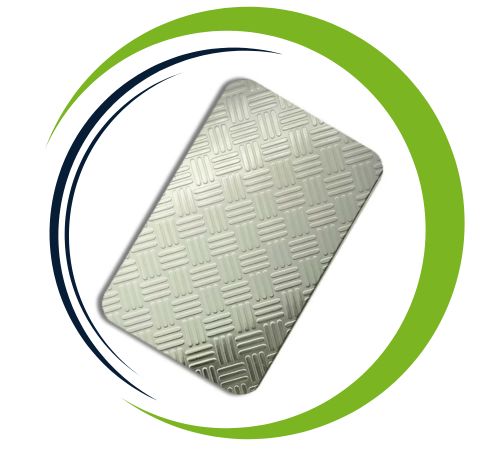

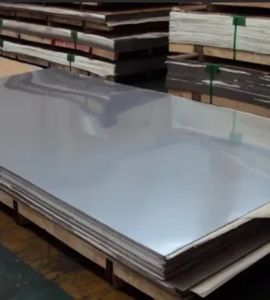

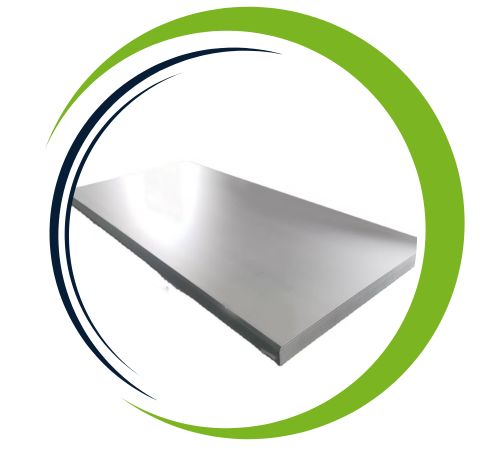

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

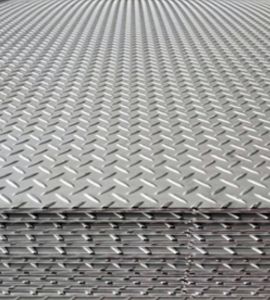

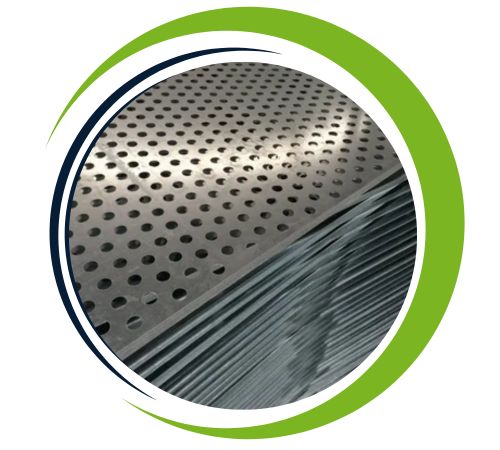

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
The stainless steel 410 sheets and plates are extensively used in applications involving moderate corrosion resistance, high strength, and satisfactory wear resistance. The general applications include turbine blades, cutlery, fasteners, valves, pump components, press plates, automotive parts, and heat-treated tools. SS 410 sheets and plates are also applied in steam and gas turbine parts, parts of oil and gas industries, and processing machinery. Since SS 410 sheets and plates can resist high stress and mechanical abrasion, they are well suited to friction, heat, or periodic exposure to corrosive materials.
