Based in Chennai, India, Kunj Sheets and Plates is a well-known producer and supplier of stainless steel 410S sheets and plates. We are dedicated to providing premium stainless steel products that satisfy the various demands of different sectors. Our SS 410S plates and sheets are renowned for their outstanding oxidation resistance, weldability, and thermal stability. These products are perfect for high-temperature service environments because they are made with the newest technology and meet international quality standards. To meet the needs of the petrochemical, power generation, and automotive industries, Kunj Sheets and Plates provides a broad variety of thicknesses, sizes, and finishes.
A non-hardening, low-carbon variant of type 410 stainless steel, stainless steel 410S has a chromium content of 11.5–13.5%, a carbon content of ≤0.08%, and trace amounts of silicon, manganese, phosphorus, and sulphur. At higher temperatures, it provides good oxidation resistance and moderate corrosion resistance. The mechanical characteristics include a minimum elongation of 20%, a yield strength of approximately 205 MPa, and a tensile strength of approximately 415 MPa. Compared to regular SS 410, SS 410S has better weldability and a lower chance of hardening or cracking after heat exposure because of its stabilised structure.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

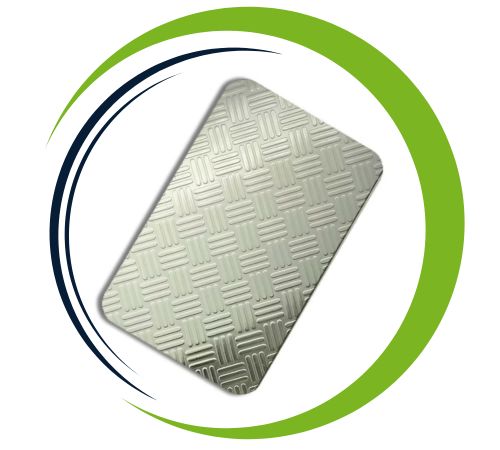

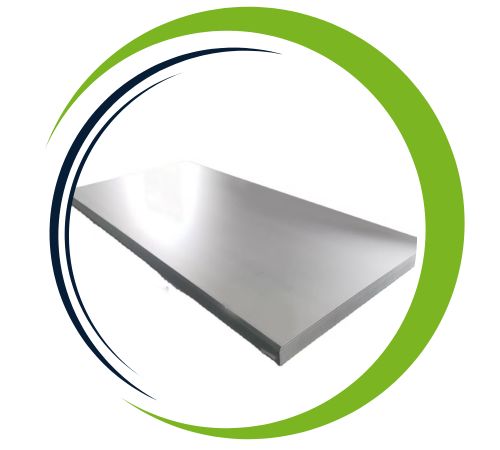

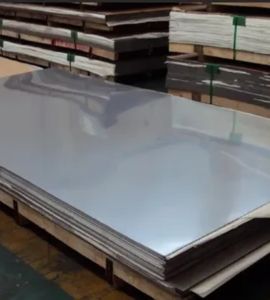

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

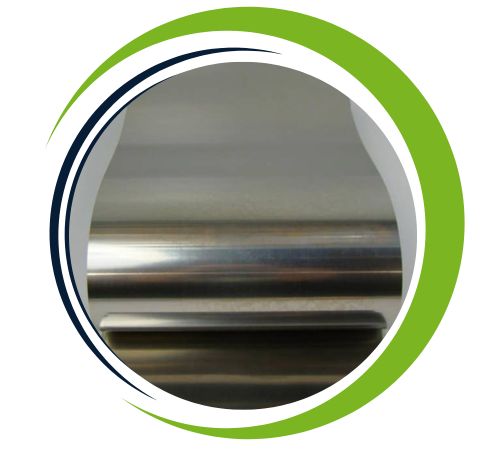

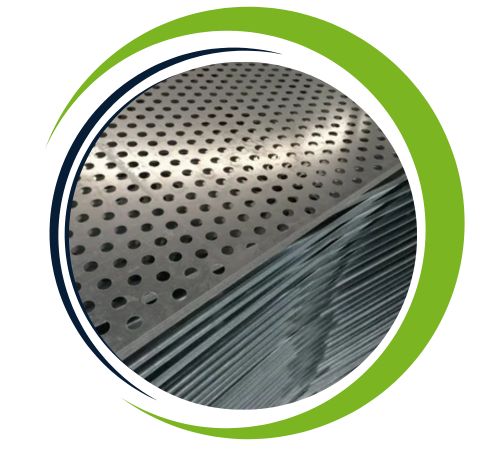

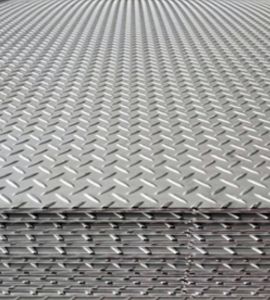

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C (max) | Si (max) | Mn | Cr | Ni | P(max) | S (max) | N (max) |
|---|---|---|---|---|---|---|---|---|
| SS 410S | 0.08 | 1.00 | 1.00 max | 11.50–13.50 | 0.20-0.55 | 0.040 | 0.030 | 0.060 |
| Tensile Strength (MPA)min. | %Yield Strength(MPA)min. | %Elongation(min.) | Hardness (HRB)max. |
|---|---|---|---|
| 415 | 205 | 22 | 89 |
| Grade | UNS | DIN |
|---|---|---|
| SS 410S | S41008 | 1.4000 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410S sheets and plates offer several key benefits. They provide excellent resistance to oxidation and corrosion, making them ideal for use in harsh environments. The low carbon content increases weldability and reduces the risk of carbide precipitation, making it easier to manufacture. In addition, 410S exhibits excellent strength and toughness, especially at high temperatures. It also provides moderate corrosion resistance, making it suitable for use in industries such as automotive, chemical processing and food processing. Its durability, cost-effectiveness and resistance to high temperatures further enhance its value.
Applications requiring moderate strength at high temperatures and resistance to oxidation frequently use stainless steel 410S sheets and plates. They are frequently found in furnace parts, refinery components, heat exchangers, and automobile exhaust systems. They are perfect for welded structures in the energy, oil and gas, and chemical processing industries because of their low carbon content, which enhances weldability. Additionally, food processing equipment and general engineering components that require corrosion resistance without sacrificing formability and fabricability use these sheets and plates. They are a popular option in a variety of high-heat industrial settings due to their adaptability, affordability, and dependability.
