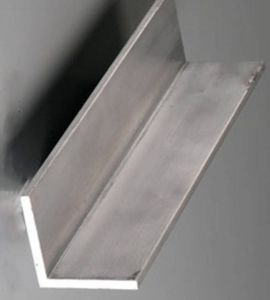

Located in Chennai, India, Kunj Sheets and Plates is a top producer and supplier of high-performance 440B stainless steel angles that are designed for accuracy, robustness, and longevity. Kunj, which is well-known for its dedication to quality and client satisfaction, provides 440B angles that satisfy the demands of industries needing high hardness and wear resistance. These angles are perfect for rigorous structural and mechanical applications because they are manufactured with cutting-edge technology and stringent quality controls. Kunj, a well-known brand in the stainless steel industry, offers tailored solutions to satisfy a range of needs in the industrial, tooling, and automotive sectors.
High-carbon martensitic stainless steel 440B has 0.75–0.95% carbon and roughly 16–18% chromium. It has a moderate resistance to corrosion and exceptional hardness. 440B can reach a hardness of up to 58 HRC with the right heat treatment. Mechanical characteristics include a yield strength of about 450 MPa and a tensile strength of about 760 MPa. This grade offers good strength under stress, edge retention, and wear resistance. 440B works well in mildly corrosive environments, particularly when high strength and abrasion resistance are needed, even though it is not as corrosion-resistant as austenitic grades.
| Standard | ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |
| Hex Bar Size | 2-100mm A/F |
| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 440B Angle offers exceptional benefits, including superior hardness, strength and resistance, making it ideal for heavy duty applications Its excellent corrosion resistance ensures durability in environments where solid with water and simple chemicals. The material’s excellent machinability and polishability allows for precision and a luxurious finish. The strong mechanical properties of 440B support system integrity under challenging conditions. Furthermore, its versatility makes it suitable for use in industries such as construction, automotive and marine. Overall, the 440B angles deliver long-term performance and reliability, reducing maintenance costs over time.
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
Stainless Steel 440B Angles are widely used in applications where high hardness, strength, and wear resistance are essential. In the automotive and aerospace industries, they serve in structural frameworks, support brackets, and wear-resistant parts. In the tooling sector, 440B is used for knife blades, cutting tools, and dies due to its excellent edge retention. It is also employed in mechanical and engineering components, such as shafts, fasteners, and valves, which operate under high-stress conditions. Additionally, 440B angles are utilized in machinery parts and industrial equipment that require long service life and reliability in moderately corrosive environments.
