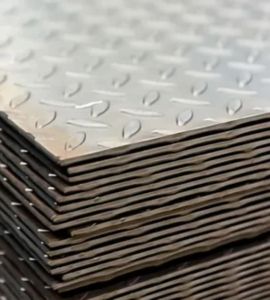

Kunj Sheets and Plates is a well-known manufacturer and supplier of Stainless Steel 440C Sheets and Plates, located in Chennai, India. They’ve built a solid reputation for providing high-performance stainless steel products, delivering precision-engineered SS 440C materials that are perfect for critical applications where high hardness and wear resistance are essential. Stainless Steel 440C is a high-carbon martensitic stainless steel celebrated for its impressive strength, edge retention, and moderate corrosion resistance. These sheets and plates find their way into various industries, being widely used in tools, bearings, surgical instruments, and valve components. With a commitment to strict quality standards and reliable delivery, Kunj ensures that their stainless steel solutions are both durable and dependable, serving customers across India and around the globe.
Stainless Steel 440C Sheets and Plates typically contain 16–18% chromium, 0.95–1.2% carbon, and small amounts of manganese, silicon, and molybdenum. As a high-carbon martensitic stainless steel, 440C offers outstanding hardness and wear resistance when heat-treated. Its tensile strength can reach up to 760–980 MPa, and it offers a yield strength around 450 MPa, with excellent edge retention and moderate corrosion resistance in hardened conditions. Though less corrosion-resistant than austenitic grades, it performs well in mild environments. It can be hardened through heat treatment, making it ideal for highly stressed, wear-prone components.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | min. max. | 0.95 1.20 | – 1 | – 1 | – 0.04 | – 0.030 | 16.00 18.00 | – 0.75 | – | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
| Grade | WERKSTOFF NR. | UNS |
| SS 440C | 1.4125 | S44004 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 C | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 440C Sheet and Plates offers many advantages in paper and plate form. It is known for its high durability, which makes it ideal for applications that require damage resistance such as nails, bearings and valves. It has excellent corrosion resistance, especially in water and chemical environments. 440C also provides excellent strength and stability, maintaining its mechanical properties even at elevated temperatures. Furthermore, it is easily machined and manufactured, making it a standard method for precision manufacturing in industries including automotive, aerospace and medical.
Stainless Steel 440C Sheets and Plates usually have a composition of 16–18% chromium, 0.95–1.2% carbon, along with trace amounts of manganese, silicon, and molybdenum. This high-carbon martensitic stainless steel is known for its impressive hardness and wear resistance, especially after heat treatment. It boasts a tensile strength that can soar between 760 and 980 MPa, and a yield strength of about 450 MPa, making it great for maintaining sharp edges and offering decent corrosion resistance in hardened states. While it may not be as corrosion-resistant as austenitic grades, it still holds up well in less harsh environments. Plus, its ability to be hardened through heat treatment makes it a fantastic choice for components that face heavy stress and wear.
