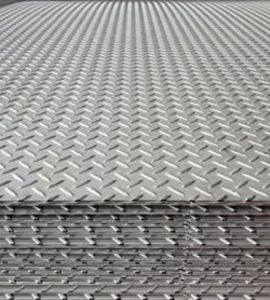

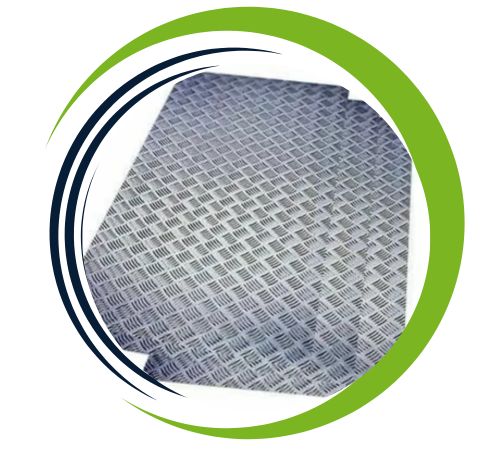

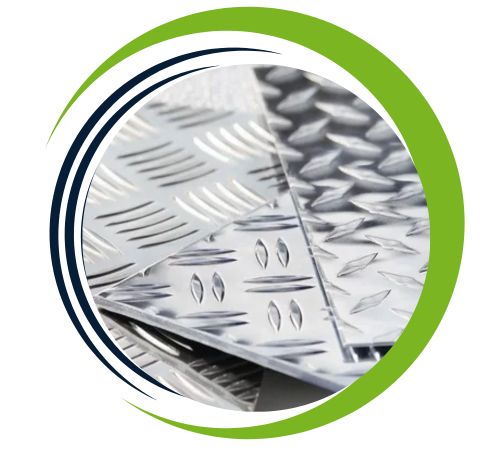

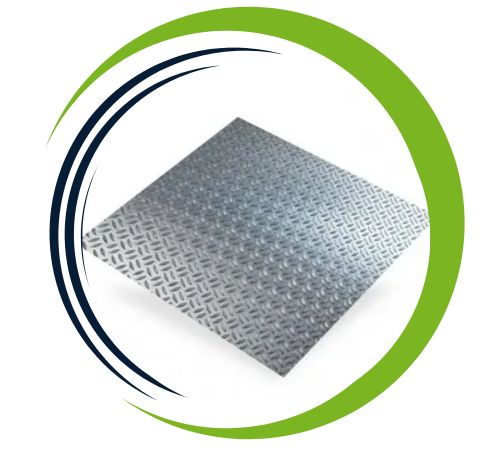

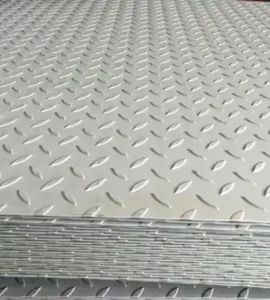

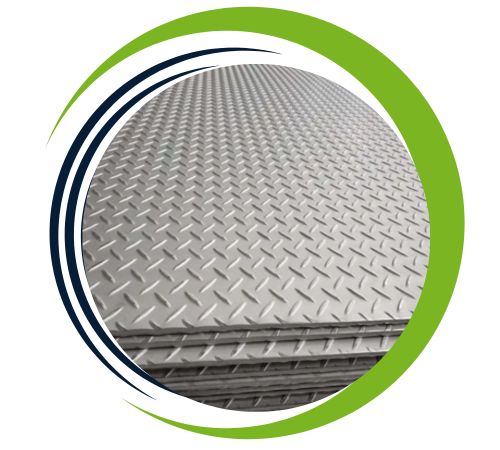

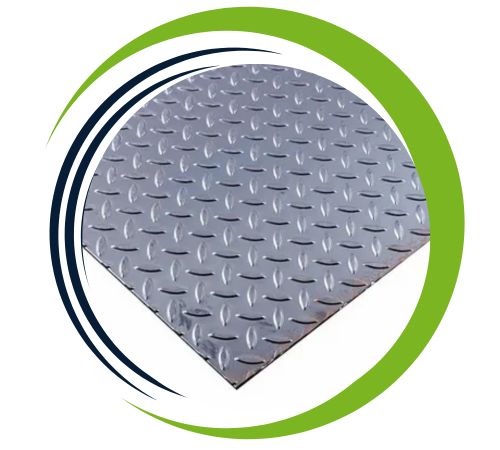

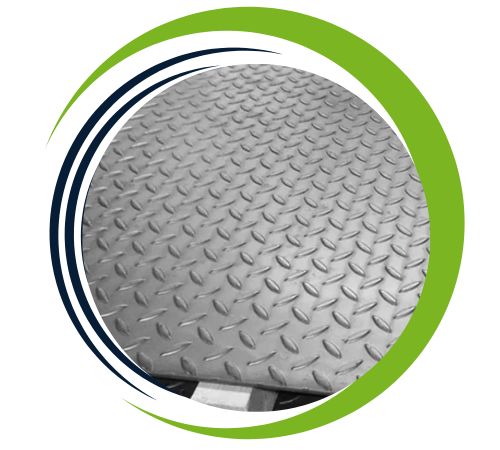

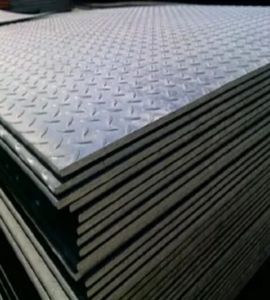

With its headquarters located in Chennai, India, Kunj Sheets and Plates is a reputable manufacturer and supplier of high-quality stainless steel engraved sheets and plates that provide sturdy, non-slip solutions for industrial, decorative, and structural applications. These chequered sheets, which are made from premium stainless steels like 304, 316, and 202, have noticeable raised patterns like teardrops or diamond designs for added traction and visual appeal. Kunj guarantees long-lasting performance, excellent surface finish, and dimensional accuracy. These sheets and plates, which are perfect for both indoor and outdoor use, are used in a variety of industries, such as heavy-duty equipment platforms, flooring, architecture, and transportation.
Chequered Stainless Steel The most common grades of stainless steel used to make sheets and plates are 304, 316, and 202. Depending on the grade, these steels usually contain 16–18% chromium and 8–14% nickel. These sheets have outstanding durability, mechanical strength, and resistance to corrosion. Mechanical characteristics include yield strengths of roughly 200–300 MPa and tensile strengths between 500 and 750 MPa. Superior slip resistance is offered by the textured surface, and the material is still simple to fabricate and weld. They are appropriate for a variety of settings and structural uses due to their non-magnetic nature (in austenitic grades) and resistance to heat.
Specifications : ASTM A182 / ASME SA182
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
Thickness : 3mm – 5mm.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Wire Mesh / Wire Netting ETC.
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
You’ll find Structural Steel Sheets and Plates widely used in industries that require strength, durability, and cost-effectiveness. In construction, they serve as the backbone for buildings, bridges, and infrastructure projects. In the manufacturing of heavy machinery and equipment, they provide crucial load-bearing support. The shipbuilding, railway, and automotive industries also rely on structural steel for chassis, reinforcements, and frames. These plates are ideal for platforms, tanks, cranes, and various industrial fabrication projects. Their outstanding weldability and machinability make them suitable for both intricate and large-scale applications.
Stainless Steel Chequered Sheets and Plates offer several advantages, including enhanced slip resistance, which is ideal for floors, stairs, and walkways. Their durability and corrosion resistance ensures long-lasting performance in harsh environments. The unique pattern provides aesthetic appeal and functionality, improving traction in wet or oily conditions. They are lightweight yet strong, ensuring easy handling and installation. They are also low-maintenance, easy to clean, and versatile, and they are widely used in industries like construction, automotive, and marine for decorative and functional purposes.
| Thickness | Plate Weight per Unit Area | Density |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Because they are long-lasting and non-slip, stainless steel engraved sheets and plates are frequently used for industrial platform flooring, stair treads, and walkways. They are utilised in truck beds, footplates and protective linings in the transportation industry. They are used for partition walls, lift panels and decorative cladding in interior design and architecture. Because of their resistance to corrosion, they are also used in the chemical and food processing industries, where durability and hygienic conditions are crucial. They are perfect for high-traffic or safety-sensitive applications in a variety of industries due to their durability, ease of maintenance, and anti-slip qualities.
