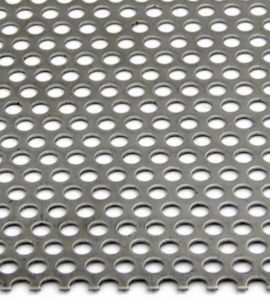

Stainless steel perforated sheets and plates with excellent performance, visual appeal, and functionality are produced and supplied by Kunj Sheets and Plates, a reputable company in Chennai, India. These sheets, which are made from premium stainless steel grades like 304, 316, and 202, are renowned for their expertly designed patterns and exceptional durability. They serve a broad range of commercial, architectural, and industrial applications and come in a variety of hole sizes and shapes. Customer-specific needs and quality control are given top priority by Kunj, which guarantees products that are strong and stylish while retaining corrosion resistance and superior workability in a variety of settings.
Grades like 304, 316, and 202 are frequently used to make stainless steel perforated sheets and plates. These alloys, which have high strength and corrosion resistance, usually contain 18–20% chromium and 8–12% nickel. Depending on the grade, mechanical properties include a yield strength of 200–300 MPa and a tensile strength of 500–750 MPa. The material is still formable and weldable, and the perforation does not substantially impair structural integrity. Applications requiring airflow, filtration, and weight reduction without compromising performance can benefit from stainless steel’s durability and thermal resistance.
| Type | 1mm/ 2mm perforated stainless steel metal mesh screen sheet |
| Thinckness | 0.3-15mm |
| Widthness | 1000mm~ 2000mm or customized |
| Length | 1000mm~ 6000mm or customized |
| High Demand SS Perforated Sheet Thickness | 1, 1.25, 1.6, 2, 8 mm |
| Brand name | TISCO, JISCO, BAOSTEEL, POSCO, LIANZHONG, ETC |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Material | 201/201/304/ 304L/ 316/316ti/ 316L/ 321/309S/ 310S/ 904L stainless steel perforated sheet |
| Surface | 2B, BA, HL, Brush, NO.1, NO.4, 8K, SB, etc |
| Hole Pattern |
|
| Other Perforation Material |
|
| Perforated Sheet Application |
|
| Certificate | We accept the third inspections such as SGS-BV etc. |
| Standard sheet sizes | 1000mm*2000mm, 1250mm*2500mm, 1219mm*2438mm, 1500mm*3000mm We can produce other standard as customized |
| Certification | BV, SGS , IQI, TUV. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel Perforated Sheets and Plates offer several advantages, including excellent corrosion resistance, durability, and aesthetic appeal. They are highly versatile and used in various applications such as filtration, ventilation, and decorative design. Their ability to withstand harsh environments, including extreme temperatures and chemical exposure, makes them ideal for industrial and architectural use. Additionally, they provide strength, impact resistance, and ease of fabrication, allowing for hole patterns and size customisation. Lightweight yet strong, they offer cost-effective solutions with low maintenance requirements.
| P (mm) | W (mm) | Thick × panel size |
|---|---|---|
| 3.5 | 2 | 1 mm × 1 m × 2 m |
| 4 | 2 | 2 mm × 1 m × 2 m |
| 6 | 4 | 1 mm × 1 m × 2 m |
| 5 | 3 | 1 mm × 1 m × 2 m |
| 8 | 6 | 1 mm × 1 m × 2 m |
|
Width |
Alloy |
Hole Pattern |
Thickness |
Length |
Hole Size |
Weight Each |
Hole Center |
|---|---|---|---|---|---|---|---|
|
48″ |
304 |
Staggered |
16 ga |
48″ |
3/8″ |
24.19 # |
9/16″ |
|
48″ |
304 |
Staggered |
16 ga |
48″ |
1/2″ |
20.965 # |
11/16″ |
|
48″ |
304 |
Staggered |
16 ga |
48″ |
3/4″ |
19.76 # |
1″ |
|
48″ |
304 |
Staggered |
16 ga |
96″ |
3/8″ |
48.38 # |
9/16″ |
|
48″ |
304 |
Staggered |
16 ga |
96″ |
3/4″ |
39.51 # |
1″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
1/8″ |
14.52 # |
3/16″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
3/16″ |
15.97 # |
1/4″ |
|
48″ |
304 |
Staggered |
20 GA |
48″ |
1/4″ |
14.04 # |
3/8″ |
|
48″ |
304 |
Staggered |
20 GA |
96″ |
1/8″ |
29.03 # |
3/16″ |
|
48″ |
304 |
Staggered |
20 GA |
96″ |
1/4″ |
28.07 # |
3/8″ |
Grades like 304, 316, and 202 are frequently used to make stainless steel perforated sheets and plates. These alloys, which have high strength and corrosion resistance, usually contain 18–20% chromium and 8–12% nickel. Depending on the grade, mechanical properties include a yield strength of 200–300 MPa and a tensile strength of 500–750 MPa. The material is still formable and weldable, and the perforation does not substantially impair structural integrity. Applications requiring airflow, filtration, and weight reduction without compromising performance can benefit from stainless steel’s durability and thermal resistance.
