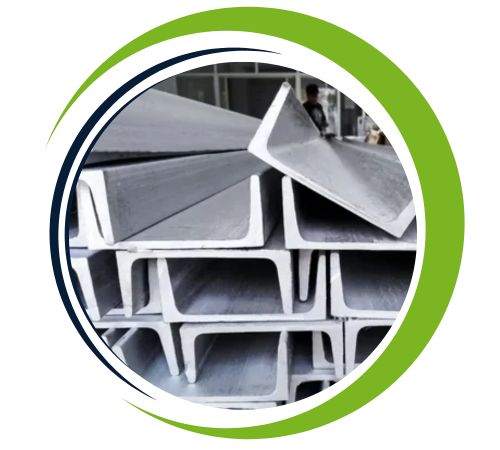

In Chennai, India, Kunj Sheets and Plates is a top producer and supplier of high-performance titanium channels. We provide Titanium Channels with exceptional strength-to-weight ratios, corrosion resistance, and long-term durability, and we are renowned for providing unrivalled quality and precision. Our titanium products are made to international standards and serve a variety of industries, such as the chemical processing, medical, aerospace, and marine sectors. With a dedication to creativity, prompt delivery, and customer satisfaction, Kunj Sheets and Plates makes sure that each titanium channel it supplies satisfies exacting quality standards for peak performance in demanding settings.
Depending on the application, commercially pure titanium (Grades 1–4) or alloyed versions such as Grade 5 (Ti-6Al-4V) make up the majority of titanium channels. Excellent corrosion resistance is provided by these channels, particularly against aggressive chemicals and saltwater. Mechanical characteristics include an elongation of up to 20%, a yield strength of 275–828 MPa, and a tensile strength range of 344–895 MPa. Because of their high melting points (~1660°C), low thermal expansion, and exceptional fatigue resistance, titanium channels are perfect for corrosive and structural service environments.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle

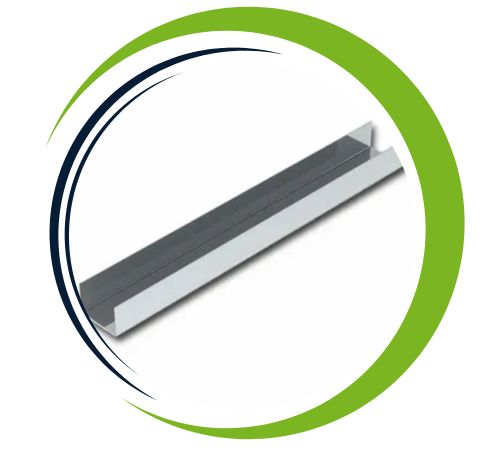

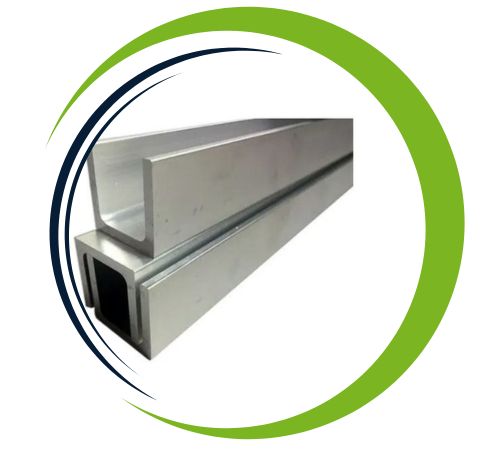

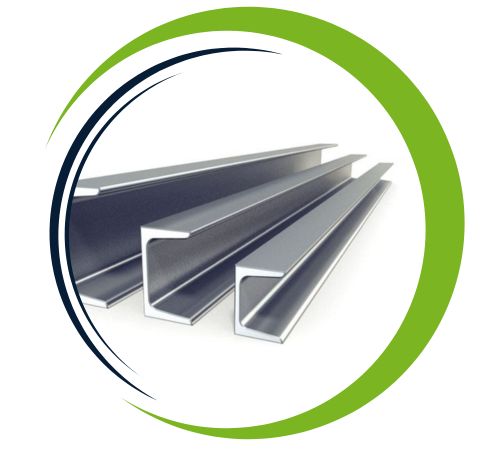

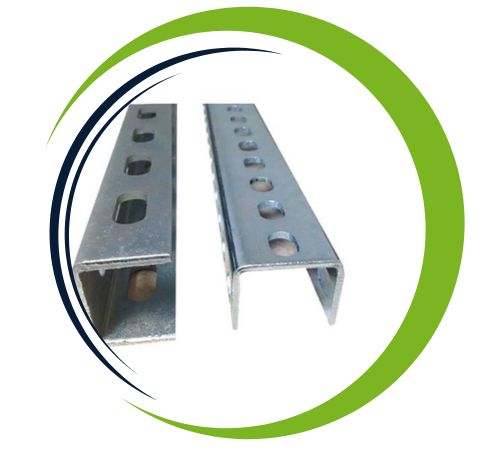

Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium channels offer several key advantages, including exceptional corrosion resistance, even in harsh environments such as marine, chemical, and aerospace applications. They are lightweight yet incredibly strong, providing a high strength-to-weight ratio. Titanium also demonstrates excellent resistance to fatigue, making it durable in demanding conditions. Additionally, it has a high melting point, ensuring stability at elevated temperatures. Its biocompatibility makes it suitable for medical applications, while its non-reactivity with many chemicals enhances its versatility. Overall, titanium channels provide long-lasting, reliable performance in challenging environments.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Channel to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsandplates.co.in.
Numerous high-performance applications in various industries make use of titanium channels. Because of their strength and light weight, they are utilised in the aerospace industry for aircraft components, support structures, and framing. They are appropriate for boat and shipbuilding in the maritime industry because they do not corrode in saltwater conditions. They serve as structural supports for the handling of corrosive chemicals in the chemical and petrochemical industries. Additionally, titanium channels are used in heat exchangers, architectural frameworks, desalination plants, and medical devices. They are perfect for crucial structural and corrosion-resistant applications because of their strength, biocompatibility, and durability.
