Based in Chennai, India, Kunj Sheets and Plates is a reputable producer and supplier of high-end Titanium Grade 5 Sheets and Plates, serving high-performance industries both domestically and internationally. Titanium Gr 5 (Ti-6Al-4V) is a popular material in the aerospace, marine, and medical industries because of its remarkable strength-to-weight ratio, resistance to corrosion, and durability. Kunj ensures superior quality and performance in the most demanding environments by providing precisely engineered sheets and plates that meet international standards. Kunj is your dependable partner for cutting-edge titanium material solutions, with a strong emphasis on innovation, prompt delivery, and customer satisfaction.
About 90% titanium, 6% aluminium, and 4% vanadium make up titanium grade 5, or Ti-6Al-4V. This alloy has a high melting point (~1660°C), good fatigue resistance, and exceptional tensile strength (up to 1000 MPa). In environments with chloride and saltwater, it continues to exhibit exceptional corrosion resistance. The alloy has good weldability, moderate formability, and high mechanical strength combined with lightweight characteristics. With a density of 4.43 g/cm³ and a hardness of about 36 HRC, it is extensively utilised in industries that demand excellent mechanical and chemical performance in harsh environments.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm

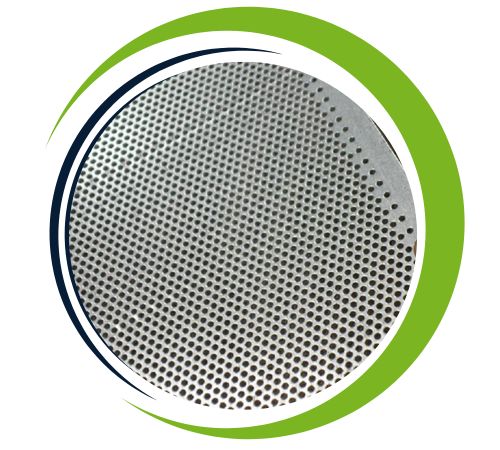

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

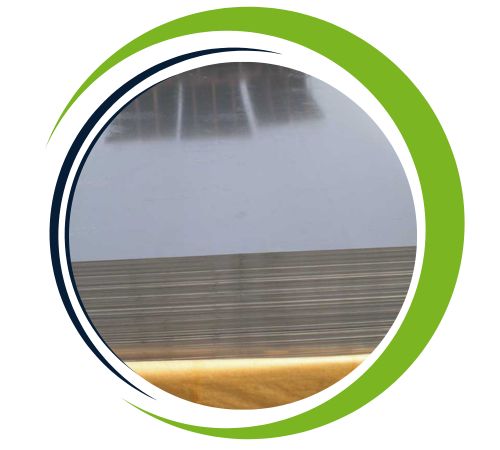

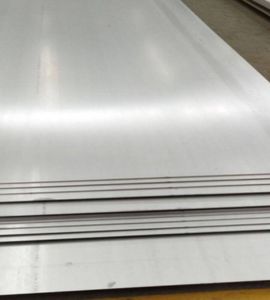

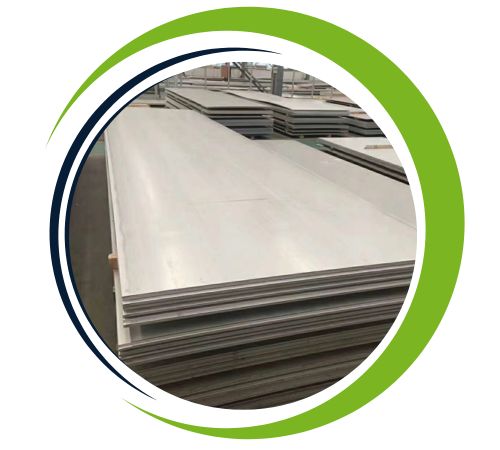

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 (Ti-6Al-4V) sheets and plates offer exceptional strength-to-weight ratio, making them ideal for aerospace, automotive, and marine applications. They are highly corrosion-resistant, including in seawater and aggressive chemicals, ensuring long-term durability. Their high-temperature resistance allows them to perform in extreme environments. Titanium Grade 5 also boasts excellent fatigue resistance, low thermal expansion, and biocompatibility, making it suitable for medical devices. Additionally, it is lightweight, offering enhanced performance without compromising structural integrity while being easily machinable and weldable for versatile applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Because of their great strength and low weight, titanium Grade 5 Sheets and Plates are frequently used in aerospace applications, such as airframe structures, turbine engine parts, and fasteners. Because of their biocompatibility, they are used in the medical field for dental instruments, orthopaedic devices, and surgical implants. Because of their exceptional resistance to corrosion, the marine industry uses them for propeller shafts, seawater handling systems, and underwater hardware. They are also employed in motorsport engineering, power generation, and chemical processing. They are perfect for high-performance and crucial structural applications because of their resistance to harsh conditions and temperatures.
