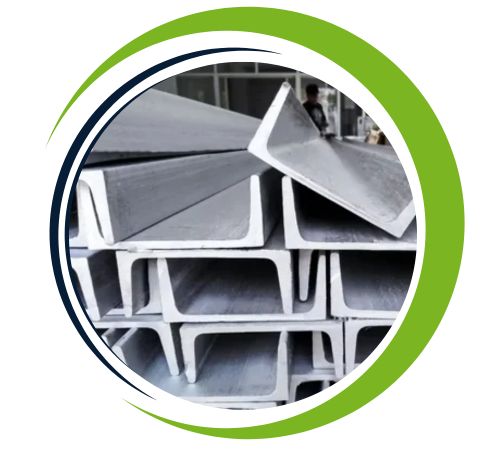

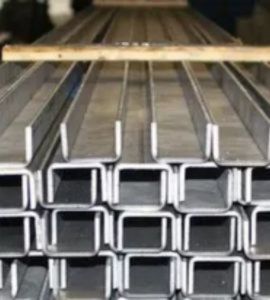

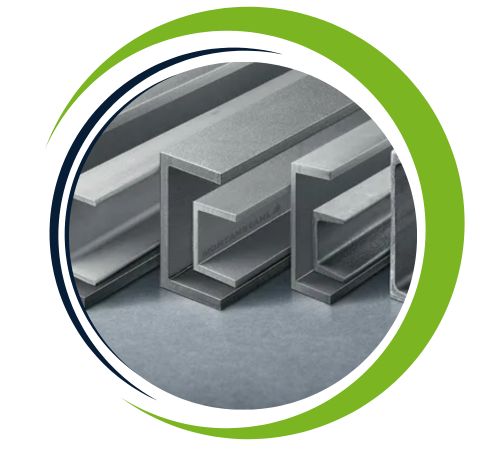

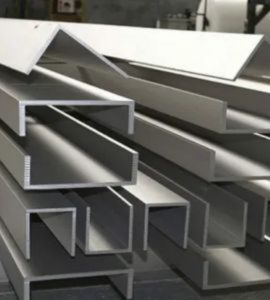

High-quality Titanium Grade 2 Channels that meet a variety of industrial needs are the speciality of Kunj Sheets and Plates, a well-known manufacturer and supplier in Chennai, India. Titanium Grade 2 is a commercially pure grade that is extensively used in the chemical, aerospace, and marine industries. It is well-known for its exceptional corrosion resistance and formability. Kunj guarantees that every channel is available in a variety of sizes and finishes and satisfies strict international standards. With years of experience and a customer-focused philosophy, Kunj is a trusted partner in precision-engineered metal products both in India and overseas, providing dependable and affordable titanium solutions.
Titanium Grade 2 is an alloy that is commercially pure and contains at least 99% titanium. Small amounts of oxygen, iron, nitrogen, carbon, and hydrogen are also present. This alloy has high ductility, good corrosion resistance, and moderate strength. Its mechanical characteristics include an elongation of about 20%, a yield strength of 275 MPa, and a tensile strength of 344 MPa. Titanium Grade 2 is frequently chosen in applications where strength and corrosion resistance are crucial at moderate temperatures due to its exceptional weldability and cold-forming properties.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Grade 2 Titanium angle bar sizes : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (depending on size)
Angle Length: Upto 6 Meters Long
Processing: Bar Cutting
Application: Paper Industry, Architucture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More
Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle

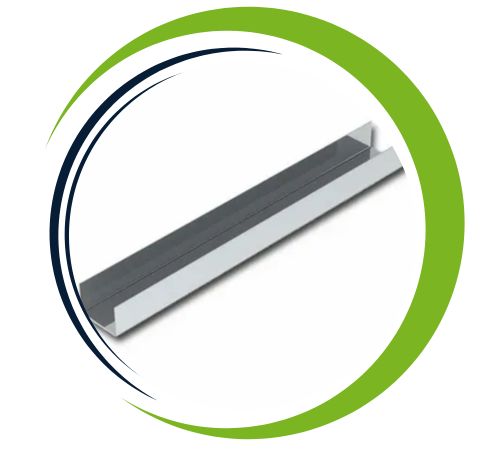

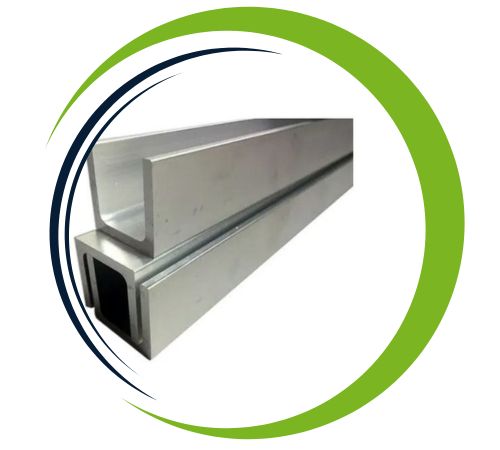

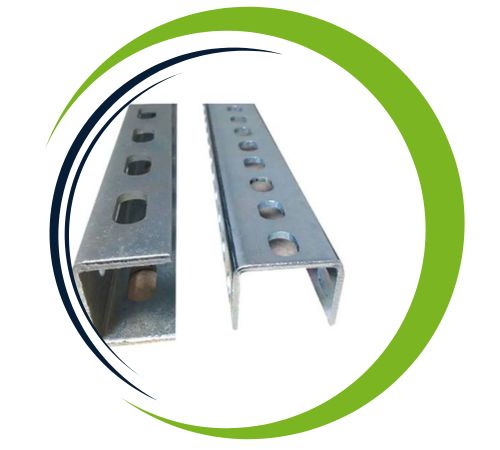

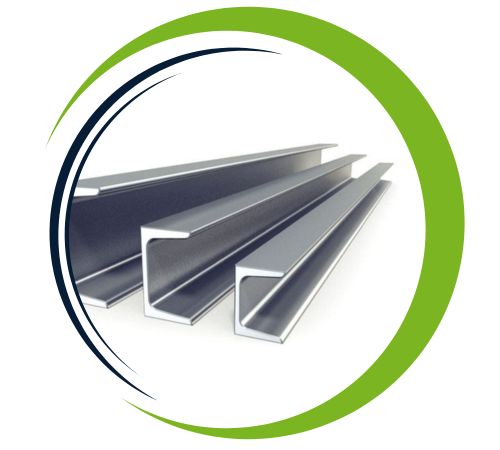

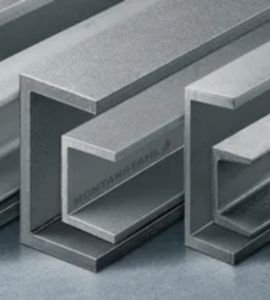

Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Element | C | Mn | N | H | Ti | Fe | O |
| Titanium Gr2 | 0.1 max | 2.00 max | 0.03 max | 0.015 max | 99.2 min | 0.3 max | 0.25 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 Channel offers several advantages, making it ideal for demanding applications. It is known for its excellent corrosion resistance, particularly in harsh environments like saltwater and acidic conditions. The material is lightweight yet strong, providing high strength-to-weight ratios. It also boasts outstanding weldability and formability, making it versatile for various manufacturing processes. Additionally, Titanium Gr 2 is biocompatible and non-reactive, ensuring safety in medical and aerospace industries. Its resistance to stress corrosion cracking, high durability, and long service life further enhance its appeal across numerous industries.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Gr.2 Angle Bar (kilogram/meter) | Titanium Gr 2 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Grade 2 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Titanium Grade 2 Channel to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsandplates.co.in.
Grade 2 Titanium Industries that need to be strong, resistant to corrosion, and lightweight frequently use channels. They are perfect for machinery like heat exchangers, reactors, and piping systems that are subjected to corrosive conditions in the chemical processing sector. Because of their ability to withstand seawater, they are utilised in marine engineering for shipbuilding and offshore structures. These channels are used by the aerospace industry in airframes and other parts where durability and weight reduction are crucial. They are also utilised in power generation systems, desalination plants, and medical applications where non-reactivity and biocompatibility are essential.
