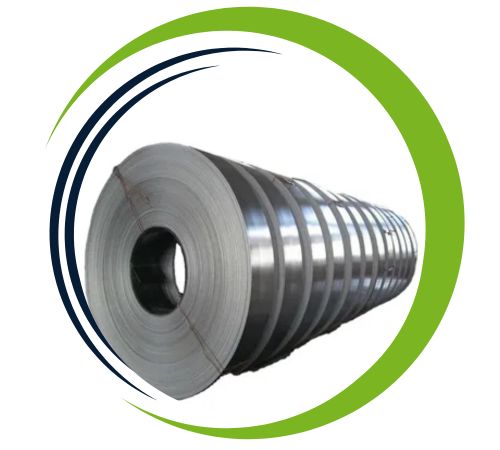

Based in Delhi, India, Kunj Sheets and Plates is a well-known manufacturer and supplier with a focus on premium titanium Grade 5 coils and slitting coils. With years of experience, we offer high-quality titanium products that are renowned for their exceptional durability, strength, and resistance to corrosion. In addition to meeting international standards, our titanium grade 5 coils come in a variety of sizes and finishes to accommodate a range of industrial applications. Serving the aerospace, marine, chemical processing, and medical industries in India and around the world, we concentrate on providing excellent products with timely service.
About 90% titanium, 6% aluminium, and 4% vanadium are present in Titanium Grade 5 Coil/Slitting Coil, also referred to as Ti-6Al-4V. This alloy provides a great mix of corrosion resistance, strength, and light weight. It has outstanding fatigue resistance, a yield strength of 880 MPa, and a tensile strength of about 950 MPa. With a hardness of 36 HRC and an elongation of roughly 14%, the material exhibits good ductility. Titanium Grade 5 is the most widely used titanium alloy in the world because it has outstanding weldability and maintains its strength even at high temperatures.
| Standards | ASTM B265 / ASME SB265 |
| Thickness | 0.2mm – 5.0mm |
| Width | 3.2mm – 1500mm & bove |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT |
| Hardness | Annealed – pickled (soft), Soft, Hard, Half Hard, Quarter Hard, Spring Hard , 1/4 hard, Yi hard,3/4 hard , full hard , extra hard |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | Cold rolled stainless steel strips annealed & pickled 2 B Cold rolled stainless steel strips annealed & skin passed 2R Work harden for specific hardness BA/BE/ Matt Finish Cold rolled stainless steel strips |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Ti Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | R56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| Thickness Tolerance +/- mm | ||||
| Thickness | Width | |||
| 320≤W＜600 | W＜320 | |||
| T1 | T2 | T3 | T4 | |
| T＜0.05 mm | 0.004 | 0.003 | 0.003 | 0.002 |
| 0.05≤T＜0.07 | 0.005 | 0.004 | 0.004 | 0.003 |
| 0.07≤T＜0.08 | 0.006 | 0.005 | 0.005 | 0.003 |
| 0.08≤T＜0.10 | 0.007 | 0.005 | 0.005 | 0.003 |
| 0.10≤T＜0.13 | 0.009 | 0.007 | 0.006 | 0.004 |
| 0.13≤T＜0.15 | 0.010 | 0.008 | 0.007 | 0.004 |
| 0.15≤T＜0.20 | 0.011 | 0.009 | 0.008 | 0.004 |
| 0.20≤T＜0.25 | 0.013 | 0.010 | 0.008 | 0.005 |
| 0.25≤T＜0.30 | 0.015 | 0.011 | 0.009 | 0.005 |
| 0.30≤T＜0.35 | 0.016 | 0.012 | 0.010 | 0.005 |
| 0.35≤T＜0.40 | 0.018 | 0.012 | 0.010 | 0.005 |
| 0.40≤T＜0.50 | 0.020 | 0.015 | 0.012 | 0.005 |
| 0.50≤T＜0.60 | 0.022 | 0.018 | 0.013 | 0.005 |
| 0.60≤T＜0.70 | 0.024 | 0.020 | 0.015 | 0.005 |
| 0.70≤T＜0.80 | 0.026 | 0.022 | 0.017 | 0.005 |
| 0.80≤T＜0.90 | 0.028 | 0.024 | 0.018 | 0.006 |
| 0.90≤T＜1.00 | 0.032 | 0.027 | 0.020 | 0.008 |
| 1.00≤T＜1.20 | 0.035 | 0.030 | 0.022 | 0.008 |
| 1.20≤T＜1.40 | 0.040 | 0.035 | 0.025 | 0.010 |
| 1.40≤T＜1.60 | 0.045 | 0.040 | 0.030 | 0.020 |
Yes, we offer custom sizes for Titanium Grade 5 Coil/Slitting Coil to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsandplates.co.in .
Grade 5 Titanium Coil/Slitting Because of its superior corrosion resistance and high strength-to-weight ratio, coils are used extensively in many different industries. It is used in the aerospace industry for engine parts, turbine blades, and aircraft components. It is utilised by the maritime sector for offshore platforms and ship hulls. It is perfect for piping systems exposed to corrosive environments, reactors, and heat exchangers in chemical processing. Dental tools, orthopaedic devices, and surgical implants are further examples of medical applications. Titanium Grade 5 is a preferred material in demanding environments because of its adaptability, dependability, and biocompatibility.
