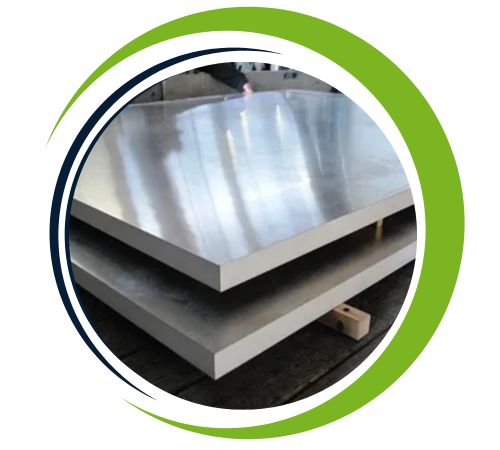

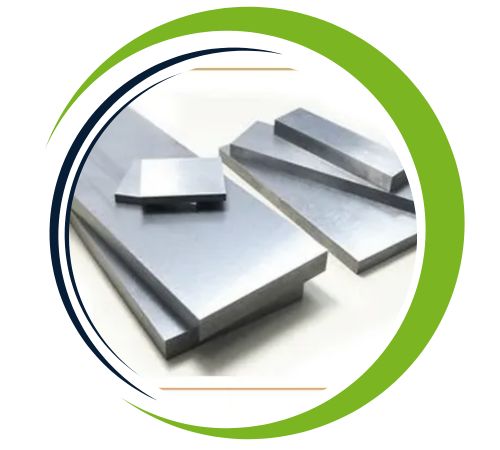

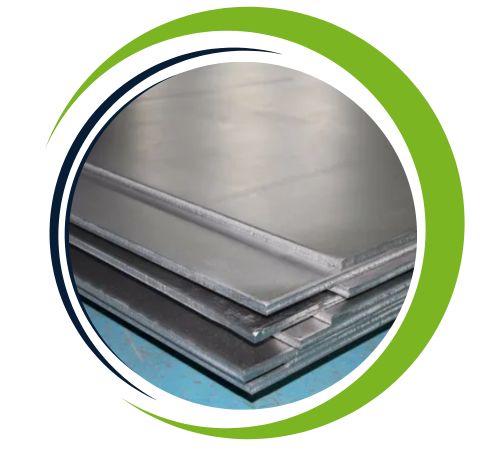

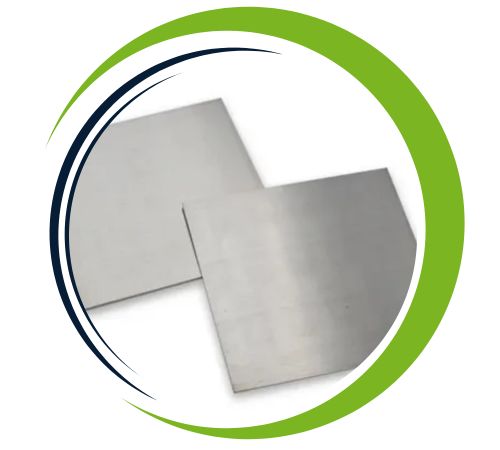

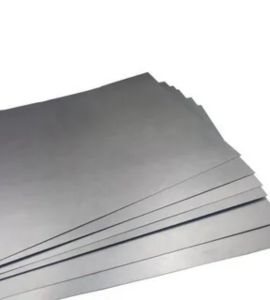

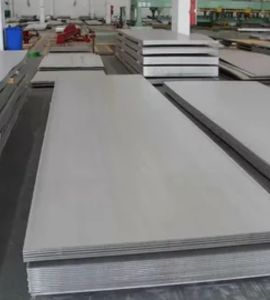

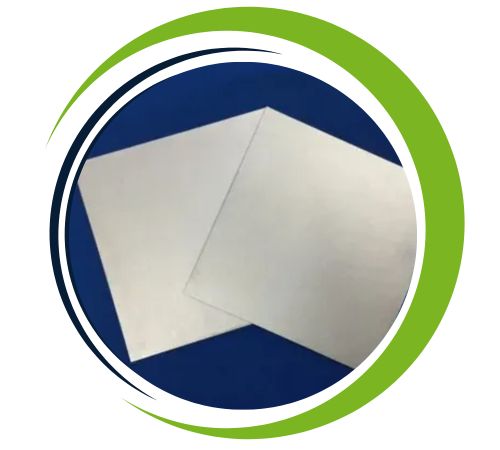

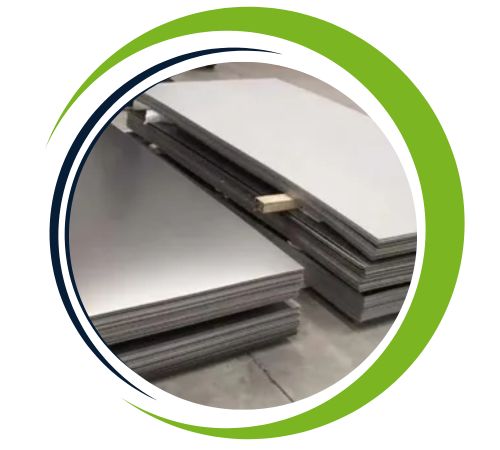

Premium-grade Waspaloy Sheets and Plates for demanding industrial applications are available from Kunj Sheets and Plates, a well-known manufacturer and supplier in Chennai, India. Waspaloy is a nickel-based superalloy that is well-known for its resistance to oxidation and strength at high temperatures, making it perfect for harsh conditions. To satisfy the requirements of the chemical processing, power generation, and aerospace industries, Kunj offers these sheets and plates in a range of thicknesses, finishes, and specifications. Kunj Sheets and Plates guarantees dependable performance and client satisfaction with its dedication to quality, prompt delivery, and precise manufacturing. They are a reliable partner for high-performance alloy solutions because their products meet international standards.
About 58% nickel, 19.5% chromium, 13.5% cobalt, 4.3% molybdenum, 3% titanium, and trace amounts of aluminium and boron make up Waspaloy, a nickel-based superalloy. At temperatures as high as 980°C (1800°F), it demonstrates exceptional strength and resistance to oxidation. Tensile strength of about 1400 MPa, yield strength of about 1000 MPa, and good creep resistance are among its typical mechanical characteristics. The alloy is appropriate for extended exposure to high-stress, high-temperature environments due to its exceptional stability under thermal cycling, particularly in turbine engine and aerospace components.
| Specification : | AMS, AMS, API |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size : | 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Waspaloy (UNS-N07001) |
| STANDARD | UNS | Material No |
| Waspaloy | N07001 | 2.4654 |
| Waspaloy | Cr | Ni | Mo | Co | Al | Ti | B | C | Zr | Fe | Mn | Si | P | S | Cu |
| MIN | 18.00 | — | 3.50 | 12.00 | 1.20 | 2.75 | 0.003 | 0.02 | 0.02 | — | — | — | — | — | — |
| MAX | 21.00 | Balance | 5.00 | 15.00 | 1.60 | 3.25 | 0.01 | 0.10 | 0.08 | 2.00 | 0.10 | 0.15 | 0.015 | 0.015 | 0.10 |
| Temperature, °F | Ultimate Tensile Strength, ksi | 0.2% Yield Strength, ksi | Elongation, % | Hardness, Rockwell C |
| 70 | 193 | 132 | 27 | 34-40 |
| 1200 | 173 | 112 | 21 | – |
| 1400 | 140 | 112 | 12 | – |
| 1600 | 79 | 60 | 12 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Waspalloy sheets and plates offer several advantages, including exceptional high-temperature strength, corrosion resistance, and oxidation resistance, making them ideal for extreme environments like aerospace and turbine applications. Their superior mechanical properties, such as high tensile and yield strength, ensure reliability under stress. Waspalloy maintains its integrity at temperatures up to 1300°F (704°C), making it suitable for demanding, high-performance components. Its resistance to creep and fatigue enhances longevity and reduces maintenance. Additionally, its ability to withstand harsh environments improves the durability and efficiency of critical machinery and components.
Yes, we offer custom sizes for Waspalloy Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsandplates.co.in.
Industries that demand high strength and resistance to thermal degradation make extensive use of waspaloy sheets and plates. They play a crucial role in the aerospace industry’s production of discs, spacers, seals, and shafts for turbine engines. The alloy’s resistance to high temperatures guarantees operational stability and longevity in gas turbines, which are another application for it in power generation. Waspaloy is perfect for heat exchangers and high-temperature reaction vessels in the chemical processing sector. Because of its exceptional resistance to oxidation and corrosion, it can also be used in nuclear applications and maritime environments, where material endurance and structural integrity are crucial.
